Glass Washing Machine Brush Pressure How to Clean Low E Panels Without Micro Scratches

Low-E glass can leave a washer looking clean while carrying fine scratches that only appear under angled inspection or after the next processing step. Brush pressure is one variable, but it interacts with brush cleanliness, water quality, glass orientation, line speed, and particles carried into the washing zone. Increasing pressure to remove stubborn residue can make the surface worse if the real cause is contaminated brushes or recirculated debris. A safer commissioning method starts with defect mapping, then changes one washing variable at a time so the source of marks can be identified instead of guessed.

For coated-glass lines, Wentrica can be assessed through brush configuration, rinse-water control, drying performance, access for cleaning, and how easily operators can adjust the process without damaging sensitive surfaces.

What to Check Before Raising Brush Pressure

l Low-E glass washing requires controlled brush pressure, clean water, correct roller condition, and stable drying airflow.

l Micro-scratches often come from contaminated brushes, abrasive particles, or pressure mismatch rather than the washer frame alone.

l Machine trials should inspect glass before and after washing under strong light.

Brush Pressure Is a Surface-Integrity Variable

Glass washing machine brush pressure decides whether contaminants are removed cleanly or dragged across the coating. Low-E panels are especially sensitive because the coating side can be damaged by particles, hard bristles, or excessive contact pressure. The machine must clean without turning dust into an abrasive tool.

General washer maintenance pages often discuss cleaning and scratch prevention, but the link between brush pressure, water cleanliness, and coated-glass inspection is easy to miss. That detail matters in architectural and insulating glass production.

Water Quality and Brush Cleanliness Work Together

Clean water reduces mineral residue and helps carry particles away from the glass surface. Dirty brushes can reintroduce grit even when water supply is acceptable. Operators should inspect brush rollers, spray nozzles, filters, and drying knives as one cleaning path.

Most micro-scratch problems are process interactions rather than one defective component. Good practice for preventing glass scratches during washing and drying therefore includes incoming-glass inspection, brush hygiene, water management, and checks after each major washing stage.

Inspection Table

Product Fit for Coated Glass Lines

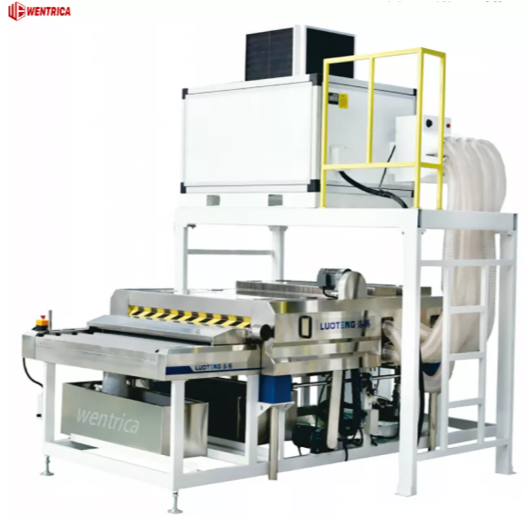

Processors handling Low-E, architectural, or insulating glass can compare Glass Washing and Drying Machines by glass thickness range, brush arrangement, drying section, and line integration; Wentrica should then be checked against the actual coating side, line speed, and plant water condition.

A good acceptance test uses clean reference panels and intentionally dusty panels, then inspects both after washing. Strong side lighting helps reveal fine scratches and residue lines that ordinary shop lighting can miss.

Operator Mistakes That Cause Invisible Damage

One mistake is increasing brush pressure to solve every cleaning problem. Another is washing coated glass with brushes that already carry particles. A third is ignoring drying airflow, which can leave streaks that are mistaken for coating defects.

Low-E glass washing should be treated as controlled surface handling. The cleaner the process path, the less force the brush needs to apply.

Line Testing Should Include Glass Before and After Each Stage

Glass Washing and Drying Machines selection should be verified with the glass type that will actually run on the line. glass washing machine brush pressure behavior changes with panel thickness, coating side, water quality, brush condition, line speed, and upstream handling. Scratch prevention is strongest when every stage is inspected, not only the washer frame.

A useful trial marks glass condition before loading, after washing, after drying, and after downstream handling. This sequence shows whether marks come from incoming glass, brush contact, drying airflow, rollers, or manual handling after the machine. Without staged inspection, the wrong part of the line often gets blamed.

For Low-E or coated panels, inspection under side lighting is important. Fine scratches and residue lines can remain invisible under ordinary shop light and then appear at installation or final customer inspection.

Configuration Questions

What glass thickness range, maximum size, and coating type must the washer handle?

Which side carries the sensitive coating, and how is orientation controlled on the line?

What water filtration, brush maintenance, and drying inspection routine will be used?

Will the washer connect to cutting, edging, insulating glass, or tempering equipment?

Low-E Glass Needs Staged Defect Mapping

A Low-E panel should be inspected before loading, after washing, after drying, and after the next handling step. This staged map separates incoming scratches from brush contact marks, drying streaks, roller marks, and manual handling damage.

Brush pressure should be adjusted in small recorded steps. Each adjustment should note glass thickness, coating side, brush condition, line speed, water filtration, and drying-air setting, because a change in one variable can hide the real cause of a mark.

Water quality often decides whether light pressure works. If particles remain in the tank, nozzle path, or rinse stage, even a soft brush can move abrasive debris across the coating. Filtration and tank cleaning should be part of the washer routine.

Drying should be inspected separately from washing. Air knife angle, blower cleanliness, and water temperature can leave lines that look like brush defects when the real cause appears after the rinse stage.

Glass processors should keep a defect map during trials. Mark whether a scratch, spot, streak, or edge mark appears before loading, after washing, after drying, or after the next handling stage. This simple map prevents the washer from being blamed for defects that start elsewhere.

Brush pressure should be adjusted gradually and recorded with glass thickness, coating side, line speed, and water condition. Sudden pressure changes can mask the real problem, especially when dirty water or worn brushes are the actual cause.

Water quality should be treated as a consumable condition, not a background detail. Filtration, nozzle coverage, tank cleanliness, and drying-air quality all influence whether particles remain on the glass surface.

For Low-E panels, operator training should include coating-side identification. If the sensitive side is handled incorrectly before washing, the washer may be asked to fix damage that cannot be removed.

The acceptance test should include normal-speed operation, edge-to-edge inspection, and repeat panels after the brushes have already been wet for a while. A fresh machine can behave differently from a machine operating after a long shift.

A good production line reduces force rather than relying on it. Cleaner incoming handling, better rinsing, and stable drying allow the brush system to remove contamination without becoming an abrasive source.

Map Scratch Location to the Washer Zone

Before adjusting the machine, mark several panes with an orientation reference and inspect them under the same lighting. Record scratches that already exist at the washer infeed. After washing, note whether new marks appear on the same face, in the same direction, or at a repeated distance from the edge. A consistent pattern often points toward a particular brush, guide, roller, or contamination path and prevents unnecessary pressure changes across the whole machine.

A staged trial can go further by inspecting glass after the brush section, after the rinse, and after drying when the line design allows safe sampling. If marks first appear after brushing, pressure, brush condition, and trapped particles become primary suspects. If the glass stays scratch-free but develops spots or streaks later, water quality and drying deserve more attention than the brush setting.

The acceptance record should include glass type, coating side, thickness, line speed, brush setting, water conductivity or other plant water metric, and inspection result. That record becomes a baseline for maintenance. When scratches return months later, operators can compare the current washer against a proven setup rather than increasing pressure until the pane looks clean.

FAQ

Can brush pressure scratch Low-E glass?

Yes. Excessive pressure, hard bristles, or trapped particles can damage coated surfaces. Brush condition and water cleanliness should be checked before increasing pressure.

How should glass be inspected after washing?

Inspect panels under strong side lighting before and after washing. Look for micro-scratches, water spots, streaks, edge residue, and coating marks.

What information is needed before choosing a glass washing machine?

Provide glass size, thickness range, coating type, line speed, washing width, water-quality condition, and whether the washer connects to an IG or tempering line.

Approve the Washer with a Defect Map, Not a Clean-Looking Pane

Once defect locations are recorded, the wider glass washing and drying machines category can be compared by brush-pressure control, water filtration, drying performance, cleaning access, and compatibility with the plant's most sensitive coated glass.
