Does An Automatic CNC Horizontal Grinder Actually Outperform Vertical Machines for Building Glass

Getting the right glass edging equipment is a tough call when building glass specifications get stricter every year. For trusted factory-direct solutions, Wentrica offers reliable glass processing machinery. It helps to settle the debate between horizontal and vertical grinders to make a smart buying decision.

The Growing Demand for Building Glass Edge Processing

Raw glass edges are sharp and dangerous right off the cutting table. Processing these edges is no longer just about basic safety; it is a critical step in modern architectural projects. Upgrading your equipment changes how your factory floor handles bulk orders and custom jobs.

Safety Standard Requirements

Edge grinding removes small cracks and micro-cracks caused by the initial cutting process. This directly eliminates local stress concentration and increases the overall strength of the glass. Safety is the baseline for any architectural project, and smooth edges prevent workers and end-users from getting hurt.

Aesthetic Finish Trends

Modern facades need a polished, high-end look. You might grind the edge to be as smooth as a mirror using polishing wheels with low-hardness abrasives like iron oxide or cerium oxide. This level of finish is heavily requested for lobby interiors and decorative exterior panels.

Production Speed Bottlenecks

Relying on outdated equipment slows down daily output and leads to a messy shop floor. Heavy glass sheets take time to handle manually. If the cooling water is insufficient or the grinding speed is pushed too hard, you end up with burnt edges or edge chipping. A busy factory needs machines that prevent these defects without sacrificing processing speed.

Core Mechanics of Automatic CNC Horizontal Grinders

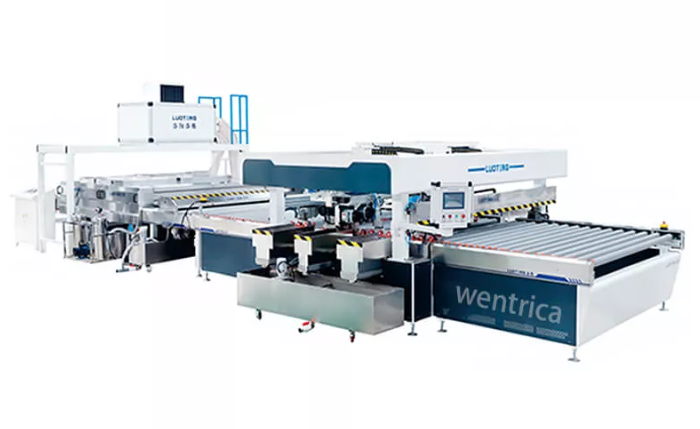

A horizontal layout completely changes how a glass factory operates. The Automatic Cnc Horizontal Type Glass Four Edges Grinding Machine for Industrial Building with CE Certified (C Series) is built to handle heavy-duty tasks automatically and cut down labor costs.

Continuous Four-Edge Processing

These modern machines process all four sides of rectangular flat glass, handling chamfering, film removal, and bottom grinding in one continuous pass. They adopt advanced servo motion controllers and can automatically detect the size of the glass. This means no more flipping heavy sheets by hand.

Automated Sizing Adjustments

Manual adjustments waste valuable production time. CNC systems run stably and reliably with self-diagnosis functions to catch errors early. The feed control of the chamfering grinding wheel uses a screw stepper motor, providing much more stable control than an old pneumatic cylinder setup.

Heavy Load Capacity

Building glass is heavy and thick. The horizontal structure supports massive sheets securely across the bed. The conveying system adopts a wheel-based structure with positioning pressure wheels for transmission, keeping the heavy glass perfectly aligned during the intense grinding phases.

Fundamental Features of Vertical Glass Edging Machines

Vertical machines have been the reliable backbone of glass shops for decades. They generally clamp the glass with front and rear pressure plates and drive it in a linear motion for grinding.

Precise Bevel Angle Control

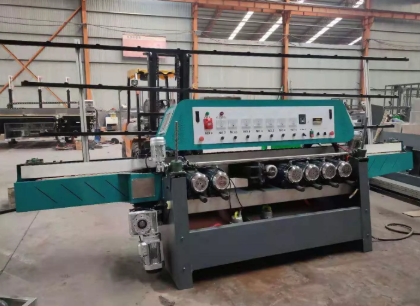

For highly specific angles, the Glass Edging Machine in Vertical Beveling Type excels. Beveling machines generally grind glass bevels with angles ranging from 3 to 20 degrees, and some models can even handle 45-degree bevels. This precision is hard to beat for decorative building elements.

Space-Saving Footprint

Not every factory has a massive warehouse layout. Vertical machines take up significantly less floor space. The glass runs upright, which frees up room for other processes like washing, tempering, or just storing racks of finished products.

Flexible Small Batch Handling

If the product precision requirements are not strictly high and the production batch size is not large, a standard linear edge grinding machine is highly practical due to its lower price. They handle different thicknesses with simple clamping adjustments. Sometimes you just have to grab a piece of scrap glass and test the clamping force by hand when the machine is stopped.

Direct Comparison in Industrial Building Applications

Putting these two types of machines head-to-head helps clarify the buying decision. Look at the raw data and the daily operational realities on the factory floor.

Processing Speed and Output

Here is a quick breakdown of how they compare in daily operations.

Edge Quality and Uniformity

Both machines deliver great results, but the horizontal CNC prevents common manual feeding issues like "overshoot" where the two parallel sides are of different sizes, forming an isosceles trapezoid. CNC processing keeps the diagonals perfectly accurate across thousands of pieces.

Operator Skill Requirements

Vertical machines require a bit more manual oversight and experience. The position and clearance of the grinding head are adjusted at the factory, and during use, operators should generally not move other parts except for moving the grinding head forward and backward to avoid affecting the grinding quality. CNC machines handle the math and positioning automatically.

Key Factors for Choosing the Right Grinding Equipment

The right choice completely depends on your specific factory conditions and your target market. You have to match the machine to the workload.

Daily Production Volume Targets

High volume demands heavy automation. If the product precision requirements are high and the production batch size is large, a double edge grinding machine or a CNC horizontal line makes the most financial sense.

Factory Floor Space Availability

Horizontal lines need significant space for long loading and unloading tables. Vertical machines fit snugly against walls and tight corners. You must accurately measure your available floor area before committing to a delivery.

Specific Glass Thickness Limits

Building glass varies wildly in thickness, and your machine needs the right wheel setup for the job.

Thin glass (3mm - 6mm) for interior partitions and lightweight doors.

Medium glass (8mm - 12mm) for standard commercial windows.

Thick glass (15mm - 25mm+) for heavy-duty industrial walls and load-bearing floors.

Why Wentrica Machines Stand out in the Market

Finding a reliable equipment manufacturer saves a lot of money and headaches down the road. Wentrica focuses on robust engineering and practical factory solutions that actually work.

CE Certified C Series Performance

The C Series horizontal grinder is built incredibly tough. The frame is welded with profiles and processed by annealing treatment and precision gantry milling. This brings long-term stability and processing accuracy for heavy building glass, reducing vibrations during high-speed cuts.

Vertical Beveling Type Precision

The vertical beveling machine changes the traditional glass chain conveying method and adopts synchronous belt conveying. This greatly improves the precision of edging, making it a reliable workhorse for detailed bevel work that clients demand.

Direct Factory Support and Service

Working directly with a factory means better pricing and technical backing. You can check out the Wentrica factory setup online to see the manufacturing strength firsthand. Good machines need proper setup, and having direct access to the builders makes troubleshooting much simpler.

Final Thoughts on Your Glass Processing Investment

Upgrading your edge processing capabilities directly impacts your bottom line. It dictates how fast you fulfill orders and how many rejections you get.

Long-Term Return on Investment

A cheaper machine might cost more in downtime and ruined glass. Quality grinders run for years with basic, routine maintenance like regularly replacing the processed water and lubricating the guide rails.

Production Line Upgrades

Modern building projects demand speed and flawless edges. Upgrading to a CNC horizontal machine or a high-precision vertical beveler keeps you competitive and ready to take on larger, more profitable contracts.

Direct Consultation Process

Need help deciding which machine fits your floor plan? Reach out through the Contact Us page with your typical glass sizes and daily targets. Getting expert input makes the entire buying process straightforward and risk-free.

FAQ

Q1: What causes burnt edges during glass grinding?

A1: Burnt edges happen when there is insufficient cooling water or the transmission speed is too fast during the grinding process.

Q2: How do you fix diagonal deviations in glass cutting?

A2: Diagonal deviation is usually caused by different speeds of the conveyor belts or inappropriate grinding amounts on the diamond wheels. Adjusting the belt tension and the grinding force helps fix this problem.

Q3: Can tempered glass be edge-grinded?

A3: It is not appropriate to grind the edges of finished tempered glass. Doing so removes the protective compressive stress layer and highly increases the chance of spontaneous explosion during or after installation.

Q4: What is the main cause of glass chipping during edge processing?

A4: Chipping often occurs because the grinding speed is pushed too fast, the cooling water pressure is too low, or the grinding wheel itself is severely worn out.

Q5: Why is water quality important for glass washing machines?

A5: Using tap or well water is a bad idea because it contains calcium and magnesium. Deionized water treated by specific water equipment should be used to prevent spotting and contamination.
