Glass Score Lines That Break Cleanly A Practical Setup for Pressure and Coolant Control

Glass cutting machine breakout control depends on score pressure, wheel condition, oil delivery, table support, and how the sheet is separated after scoring. Edge cracks often begin as small stress errors before breakout, then appear during handling, edging, tempering, or installation. A stable cutting line should check the score line, support surface, oil system, and operator handling before blaming glass quality.

Key Takeaways

l Score pressure should create a controlled surface flaw without crushing the glass edge.

l Cutting oil must reach the wheel consistently; dry scoring raises crack and breakout risk.

l Table support prevents sheet flex that can shift crack direction during breakout.

l Defect mapping by position helps separate wheel, table, oil, and handling causes.

A Score Line Guides a Crack, It Does Not Cut Through the Sheet

Glass cutting creates a controlled surface flaw. During breakout, stress follows that flaw through the sheet. If the score is too light, the crack wanders. If it is too heavy, the surface is crushed and microcracks spread beyond the intended line. Correct pressure depends on glass thickness, wheel angle, speed, and surface condition.

Edge quality problems are closely tied to downstream rework, which is why glass edge chipping reduction matters beyond the cutting table. A poor score can create defects that only become obvious during edging or tempering.

Oil Delivery and Table Support Need Daily Checks

Cutting oil reduces friction and helps create a cleaner score. A partially blocked line may leave some cuts wet and others dry, making defects appear random. Table felt, air flotation, or support blocks must also keep the sheet stable without debris points that concentrate stress.

Selecting Cutting Equipment Around Thickness Mix

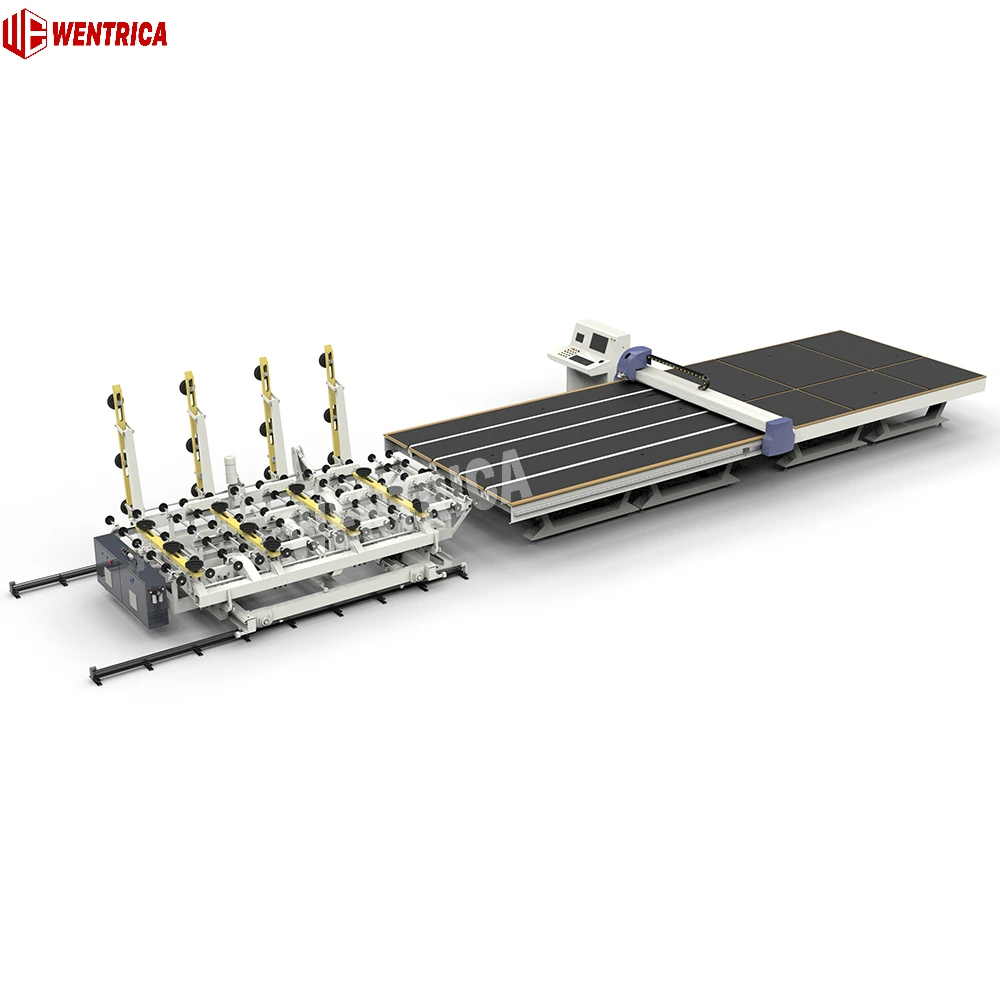

For architectural and industrial glass processing, Glass Cutting Machine should be assessed with glass thickness range, sheet size, breakout method, oil system, cutting speed, and downstream edge-quality target. Wentrica can support machine selection when sample defects and production mix are clearly documented.

Two shop-floor mistakes repeat often. Operators increase pressure to solve wandering cuts, but the real problem is table support or a worn wheel. Maintenance teams may clean the cutting head while ignoring small debris embedded in the support surface.

Automatic cutting cannot compensate for glass stored with edge damage, surface contamination, or thermal stress. Incoming glass handling and storage should be part of the defect map when cracks appear in repeated locations.

Defect Mapping Should Name the Sheet Position

When cracks appear, operators should mark sheet thickness, cut direction, score location, breakout point, and defect position. A pattern near one table area points to support or debris. A pattern following the cutting head points to wheel, pressure, or oil delivery.

The breakout step should be observed separately from scoring. A clean score can still fail if force is applied unevenly, if the sheet is flexed over a poor support point, or if operators lift a large piece before the crack has followed the intended path.

Oil delivery should be checked visually and through maintenance records. A partially blocked line may create intermittent defects that look like random glass variation. Cleaning the wheel without checking oil flow leaves the root cause in place.

Cutting Quality Protects Downstream Processes

Edge cracks can survive cutting and then open during edging, washing, tempering, transport, or installation. That delayed failure makes the cutting table responsible for costs that appear later in the line. The earlier the defect map begins, the easier it is to control total yield.

Wheel choice should match thickness range and surface condition. A wheel that gives a clean score on thin glass may crush thicker sheets if pressure is raised too aggressively. Tooling records should connect wheel hours with defect rates.

A stable cutting operation has a routine: clean table, verified oil, correct pressure, known wheel condition, controlled breakout, and careful sheet handling. When that routine is documented, machine changes and operator training become much easier to manage.

Before Cutting Is Released, Keep a Defect Reference on the Line

The cutting-line record for Glass Cutting Machine should include glass thickness, wheel condition, pressure, oil delivery, support surface, breakout method, and defect location. These items make glass cutting machine breakout control traceable when yield changes.

Keep representative accepted and rejected edge samples where operators can compare them. Physical references are often faster than a vague instruction to improve quality, especially when a defect becomes visible only after edging or tempering.

The operating boundary should include glass types, thicknesses, sheet sizes, and handling methods that were actually tested. A machine can be capable of more, but untested range should not silently become a production promise.

Line Records Should Connect Cutting Defects to Later Yield

The cutting record for Glass Cutting Machine should follow glass beyond the cutting table. If chips or cracks appear during edging, washing, or tempering, the earlier score pressure, oil delivery, support condition, and breakout method should still be traceable. That link strengthens glass cutting machine breakout control control.

Operators should be trained to identify defect shape, not only defect presence. A crushed score, wandering crack, breakout chip, and handling crack point to different corrections. Treating all defects as general bad cutting wastes time.

Table cleaning should be scheduled because small particles under glass can concentrate stress. A line may have the correct wheel and pressure yet still create cracks if support points are dirty or uneven.

The production boundary should list tested thicknesses, glass types, and maximum sheet sizes. Work outside that range can be possible, but it should trigger a new setup check rather than being treated as routine.

Repeat orders should not rely on the first sample alone. Keep a retained reference for Glass Cutting Machine, record the accepted condition, and compare later batches against the same measurement or observation method. That habit keeps glass cutting machine breakout control stable when raw materials, operators, accessories, or logistics conditions change.

If a later order needs a different size, surface, capacity, route, formula, material, or installation condition, treat it as a controlled variation instead of a casual repeat. A short variation note protects the original approval while giving the new requirement enough attention to avoid hidden mismatch.

FAQ

Why does glass crack away from the score line?

The score may be too light, table support may be uneven, breakout force may be applied poorly, or the glass may contain stress or edge damage.

How does cutting oil affect glass cutting quality?

Consistent oil delivery reduces friction at the wheel and helps form a clean score. Dry or uneven oiling can raise chipping and breakout defects.

What should be checked when a glass cutting machine chips edges?

Check wheel wear, pressure, oil delivery, table cleanliness, breakout sequence, glass storage, and whether defects repeat in the same sheet position.

Final Selection Notes

Clean breakout depends on controlled stress from score to separation. The glass processing factory capability gives a view of Wentrica's factory capabilities, while line approval should rely on defect mapping, oil checks, table support, and wheel condition.
