1.Parameter
Product | Parameter | Unit |
Max Glass Size | 2440×3660 | mm |
Min Glass Size | 160×360 | mm |
Thickness | 4-12 | mm |
Speed of Transportation | 1.0—30 | m/min |
Max Gas Consumption | 1 | m³/min |
Supply Pressure | 0.5-0.8 | MPa |
Total Power | 20 | kW |
Power Supply | 380V / 50Hz | - |
Working Table Height | 900 | mm |
Boundary Dimension | 6870×4500×2100 | mm |
2.Main configuration
Number | Name | Brand |
1 | Motion Controller | HCFA |
2 | Servo Motor | HCFA |
3 | Touchscreen | Flexem |
4 | Pneumatic Element | Artak Taiwan |
5 | Detector Switch | Korea Autonics |
6 | Optoelectronic Switch | Korea Autonics |
7 | Grinding Machine | Aluminum shell/Taizhou |
8 | Reducer | Aluminum shell/Taizhou |
9 | Rack | Helical Teeth 7 Level Accuracy |
10 | Linear Guideway | Zhejiang Maixin |
11 | Abrasive Wheel | Henan Xinyuan |
12 | Breaker | Schneider |
13 | Contactor | Schneider |
14 | Thermorelay | Schneider |
15 | Bearing for Grinding Head | SKF/NSK |
16 | Communication Cable | Imported Flexible Cable |
17 | Servo Cable | Imported Flexible Cable |
3.Structure
Machine body:
The frame structure is compact and occupies a small area. The entire structure is made of profiles and has undergone annealing treatment, which makes it less prone to deformation and has a long service life. Some core components are made of special materials. The water pan is made of stainless steel, and the grinding head is processed from 6061-T6 aluminum plate by CNC machine tools. The electrical system components are made of imported materials, ensuring stable performance.
The equipment integrates a 4-axis motor linkage system, water circulation system, conveyor belt drive system, PLC intelligent control system and CNC numerical control technology. It features overall characteristics of intelligent full automation, high precision, high speed and environmental protection

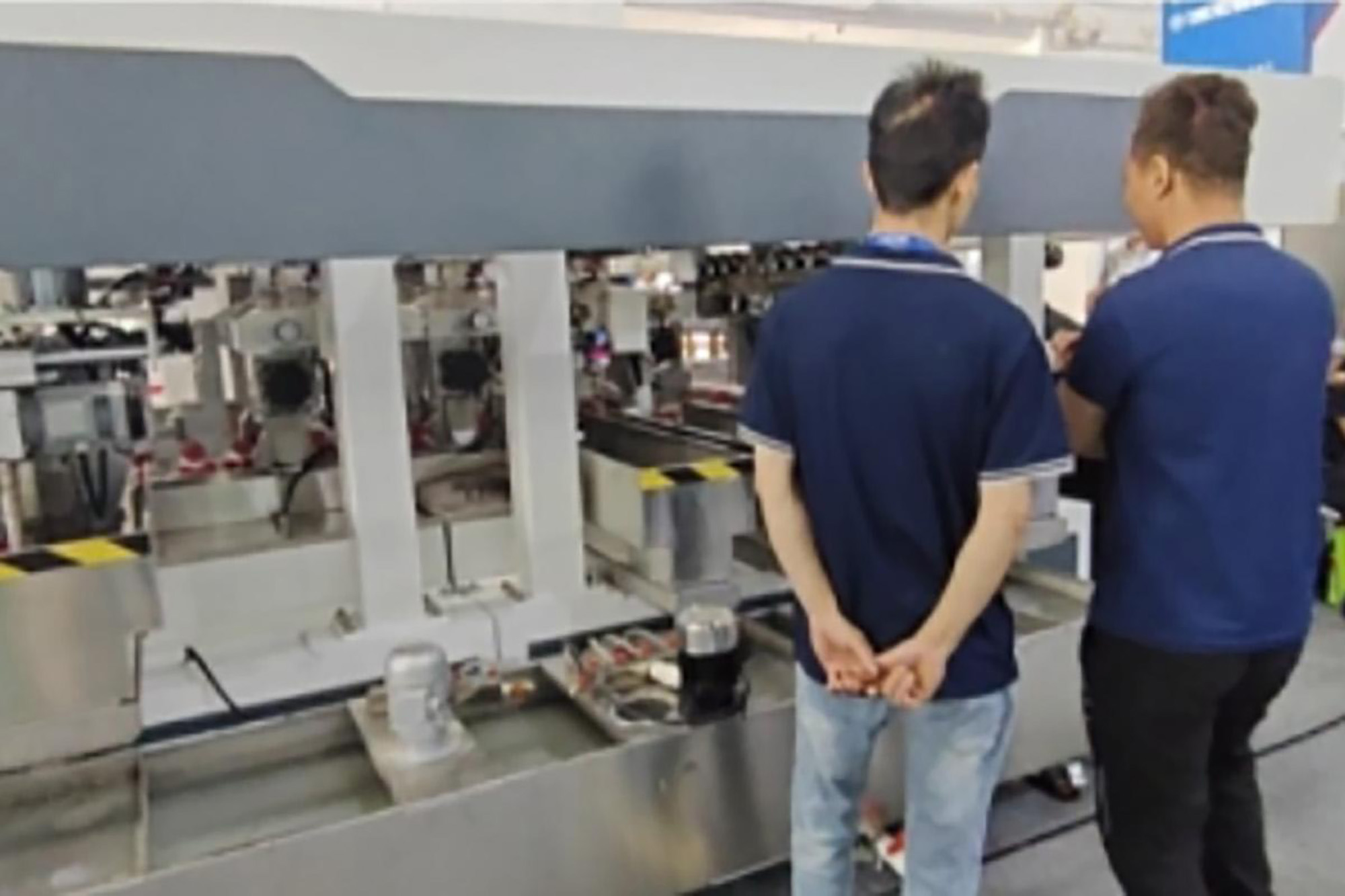

Grinding system:

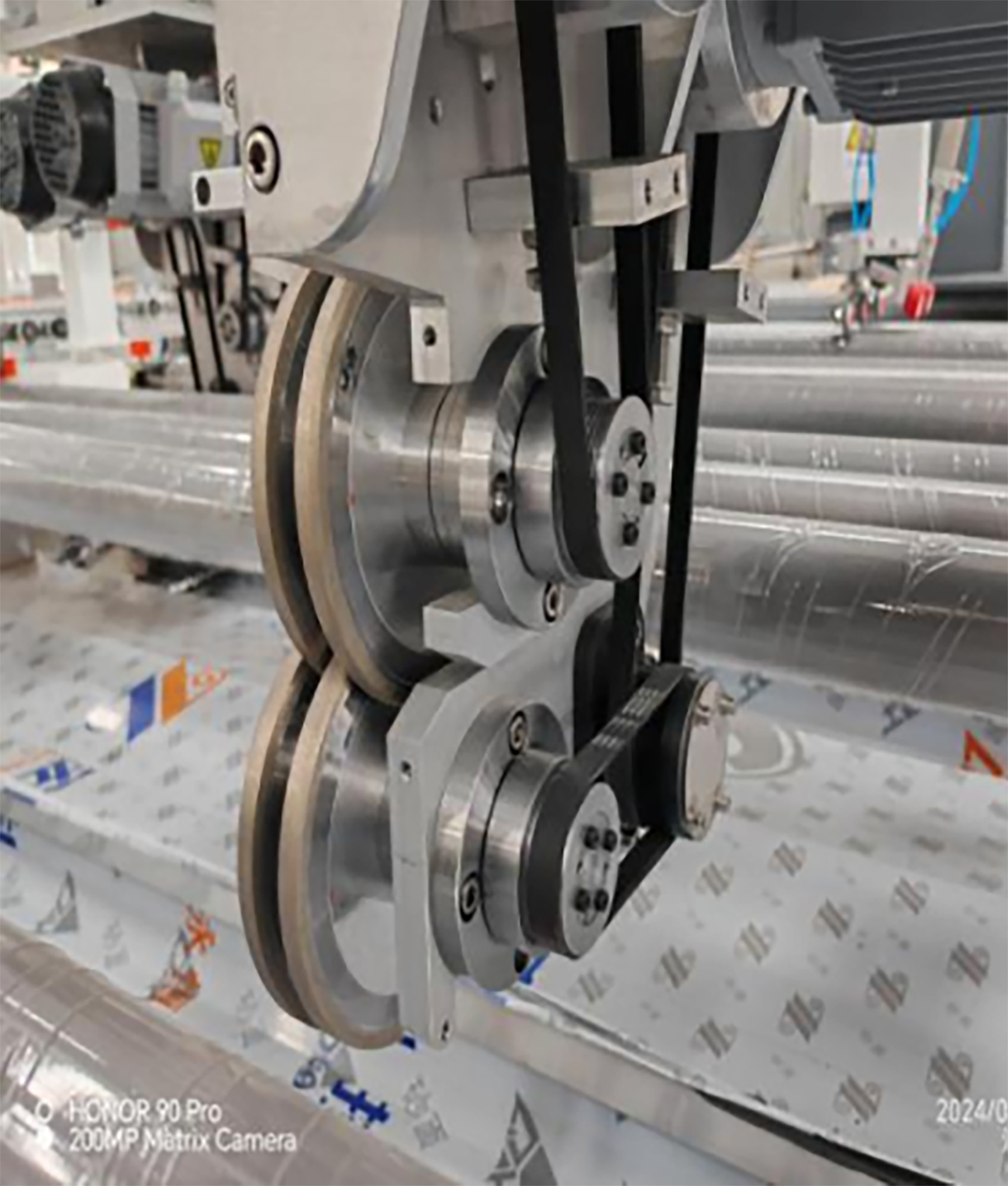

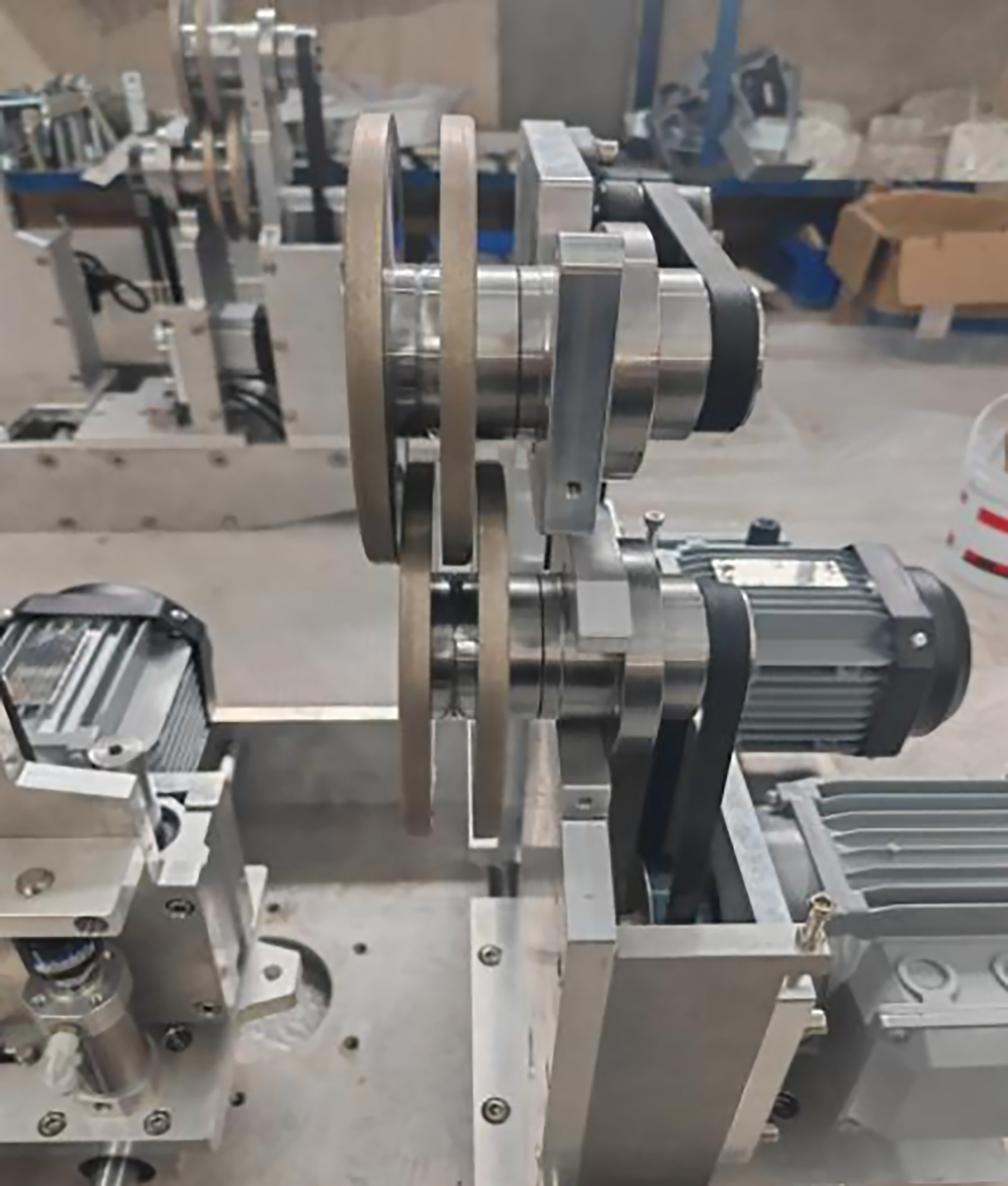

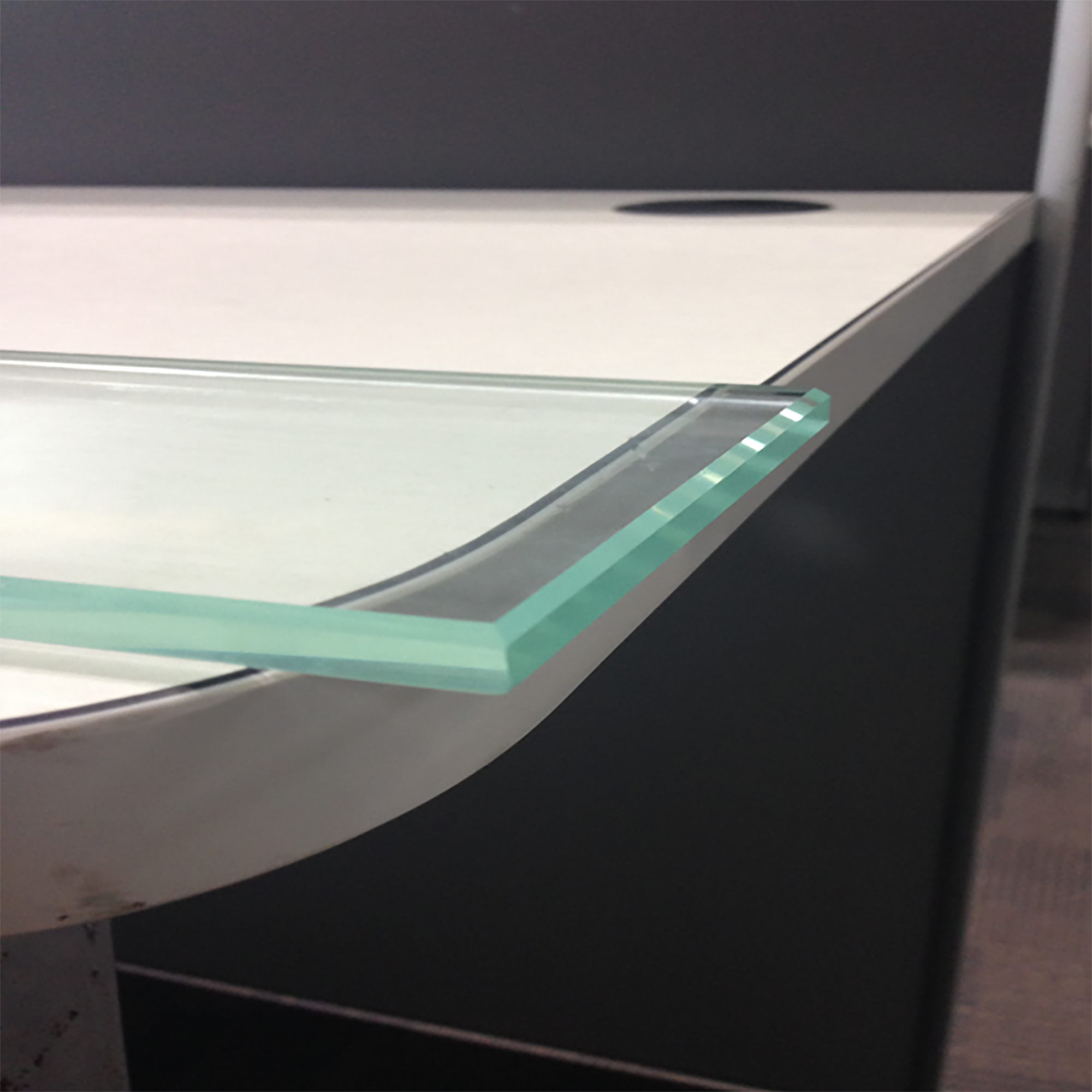

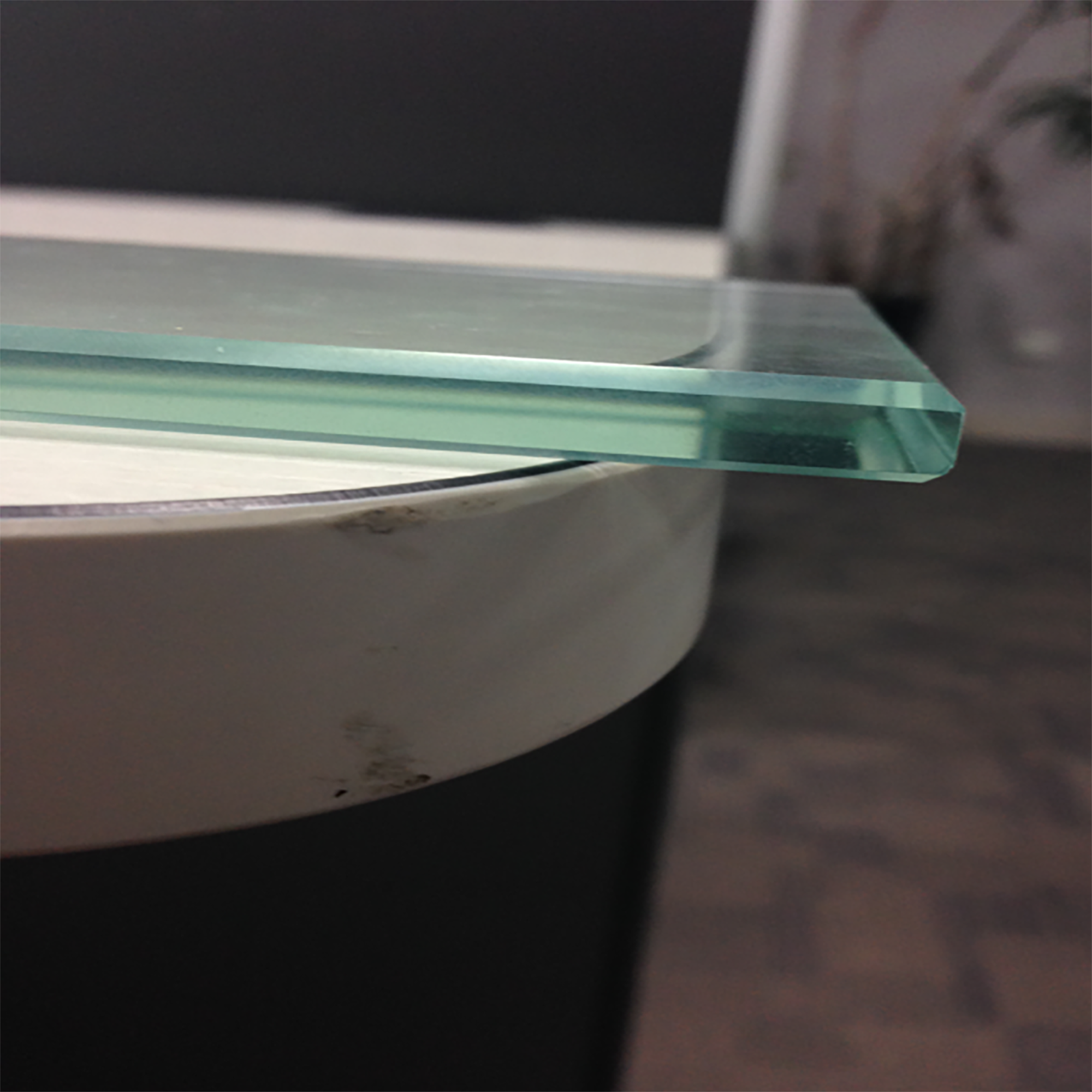

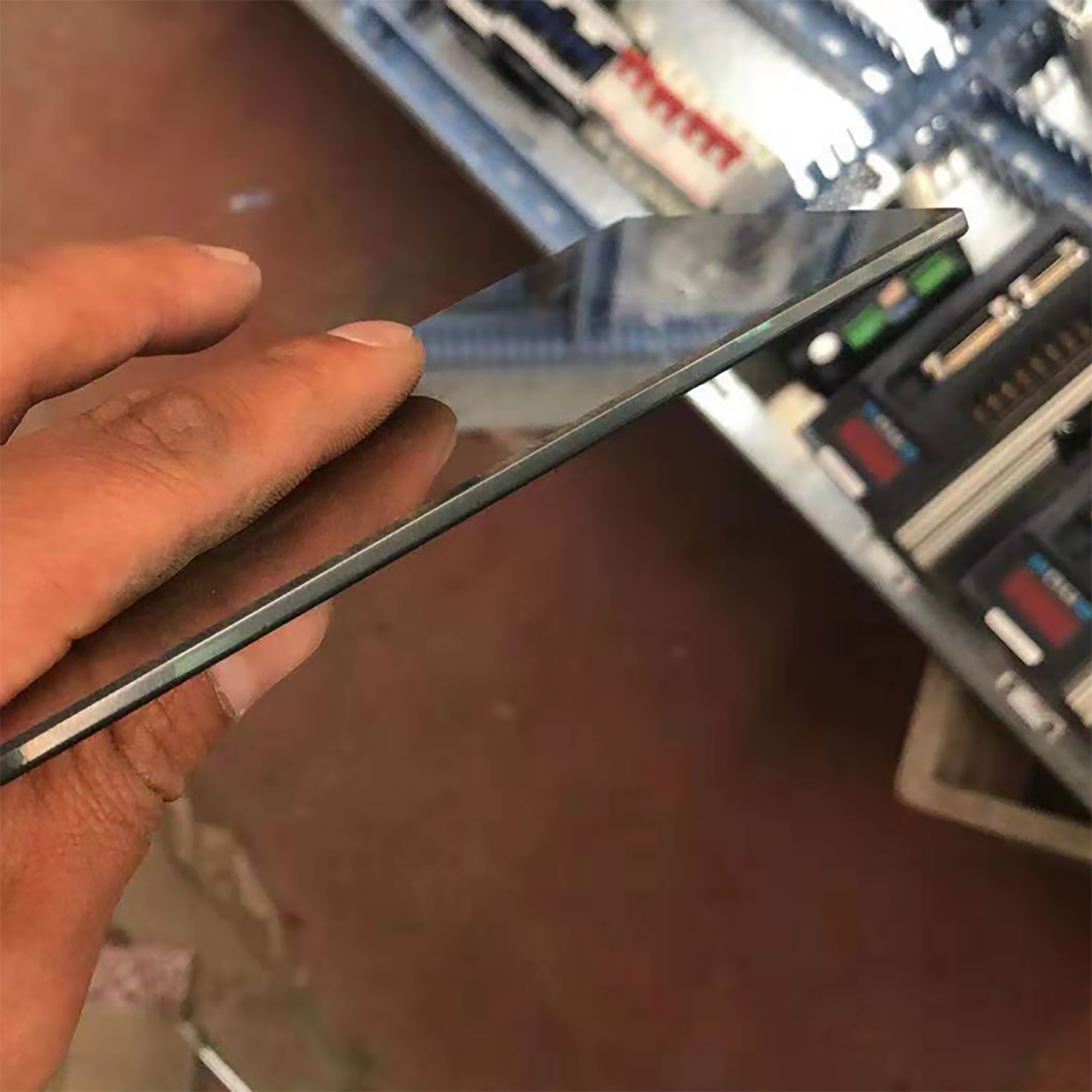

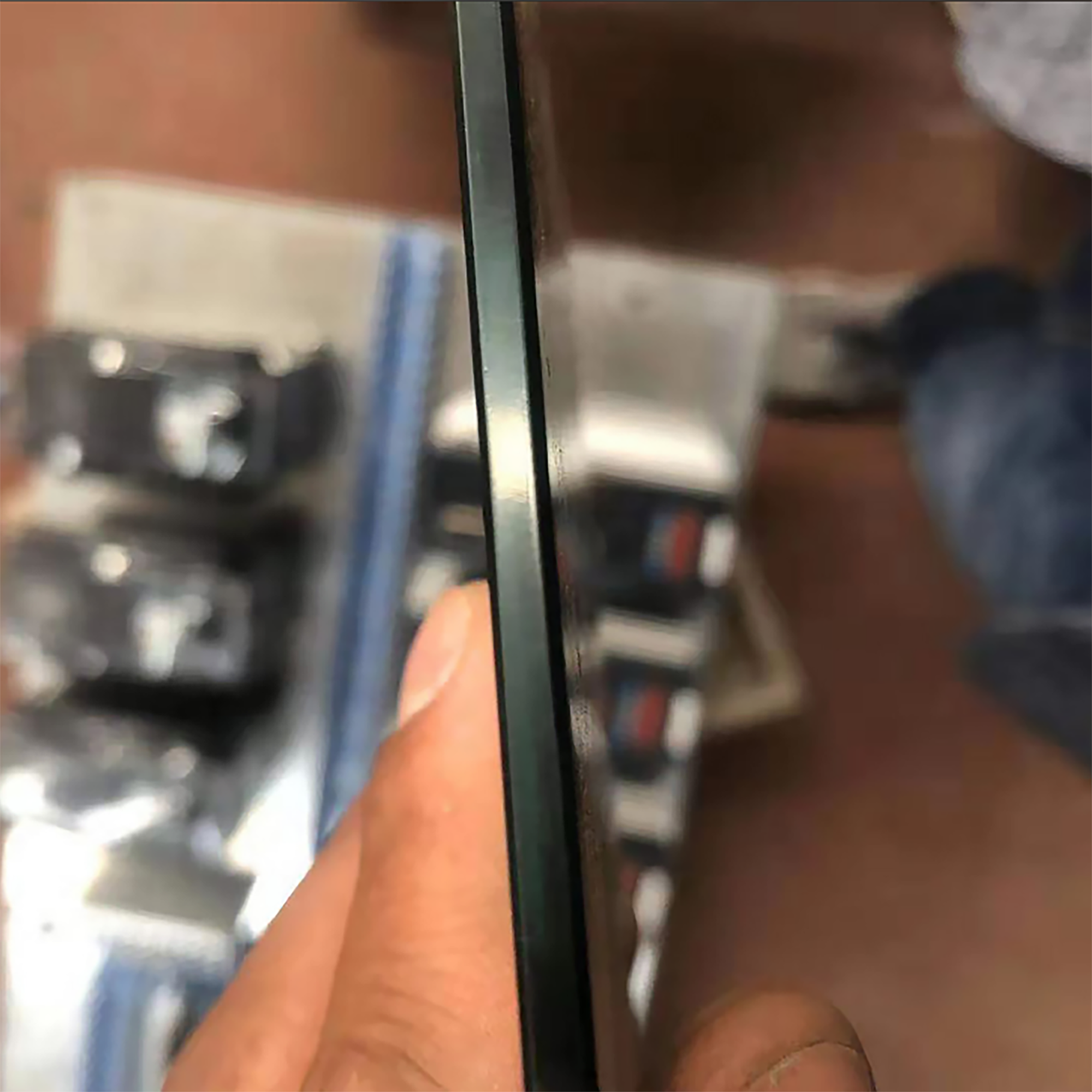

This machine is equipped with 6 sets of grinding heads, totaling twenty-four grinding heads, including diamond grinding wheels, resin grinding wheels, and polishing wheels. It integrates rough grinding, fine grinding, and polishing, with a service life of over 5,000 meters.
The movement of the grinding head is accomplished by a servo motor, guide rails and high-precision 7-stage helical gears. Parameters such as grinding edge speed and Angle can be adjusted as needed. It features high precision and stability as a whole and is suitable for various types and sizes of glass with thicknesses ranging from 3 to 25mm thick (such as insulating glass and architectural glass).
Conveying system:

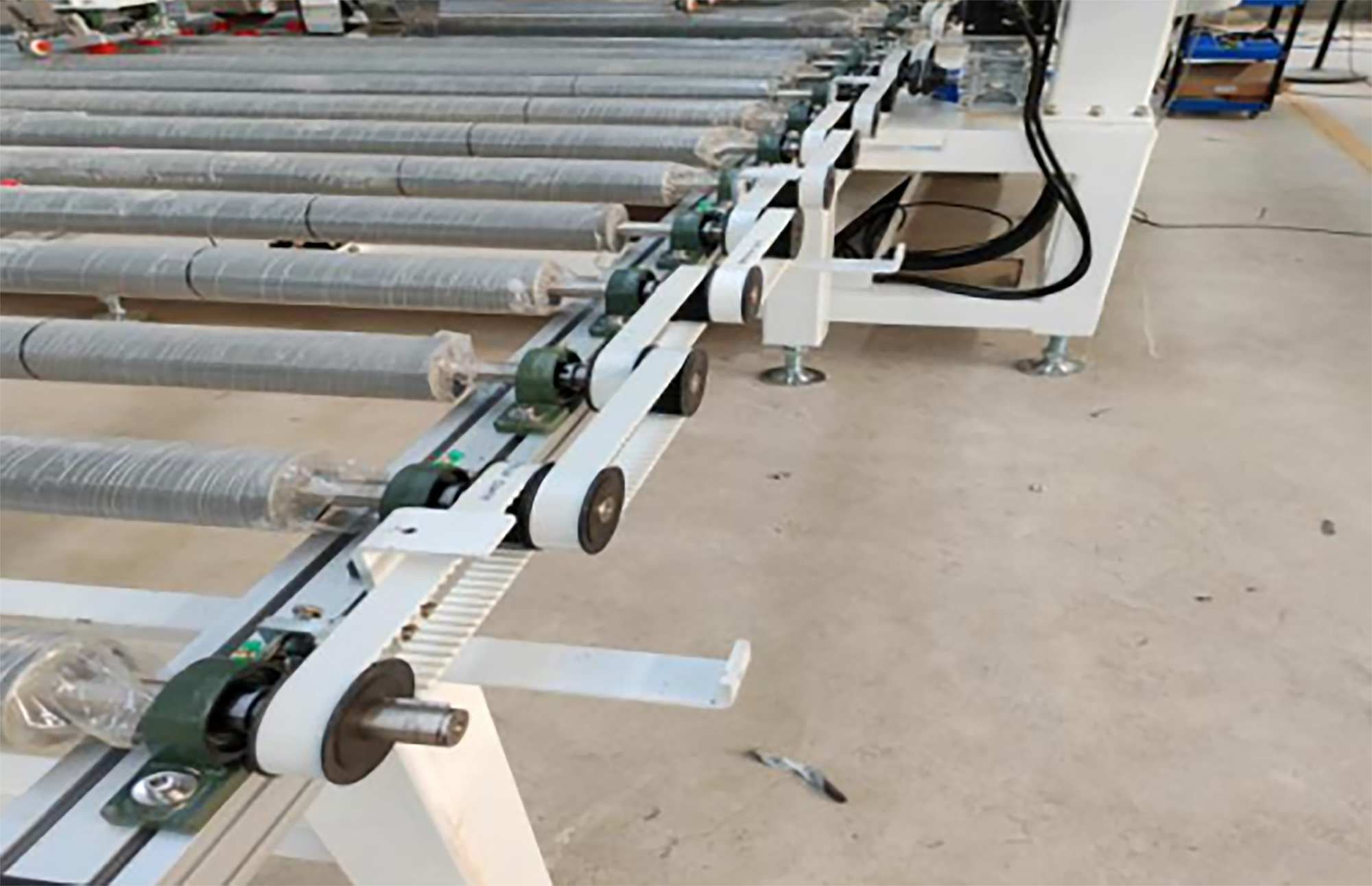

This machine adopts synchronous belt transmission without relative sliding, ensuring high-precision transmission of glass with an error of less than 0.0.5mm.
Synchronous belt transmission features low friction and energy loss, ensuring high-speed and high-efficiency transmission of glass
Control system:
The whole machine adopts a PLC control system, featuring automatic positioning, automatic monitoring, automatic adjustment of glass Angle and overload power-off functions. It can be started and stopped with one button, and the operation is simple. It supports straight line and 45° Angle edge grinding.

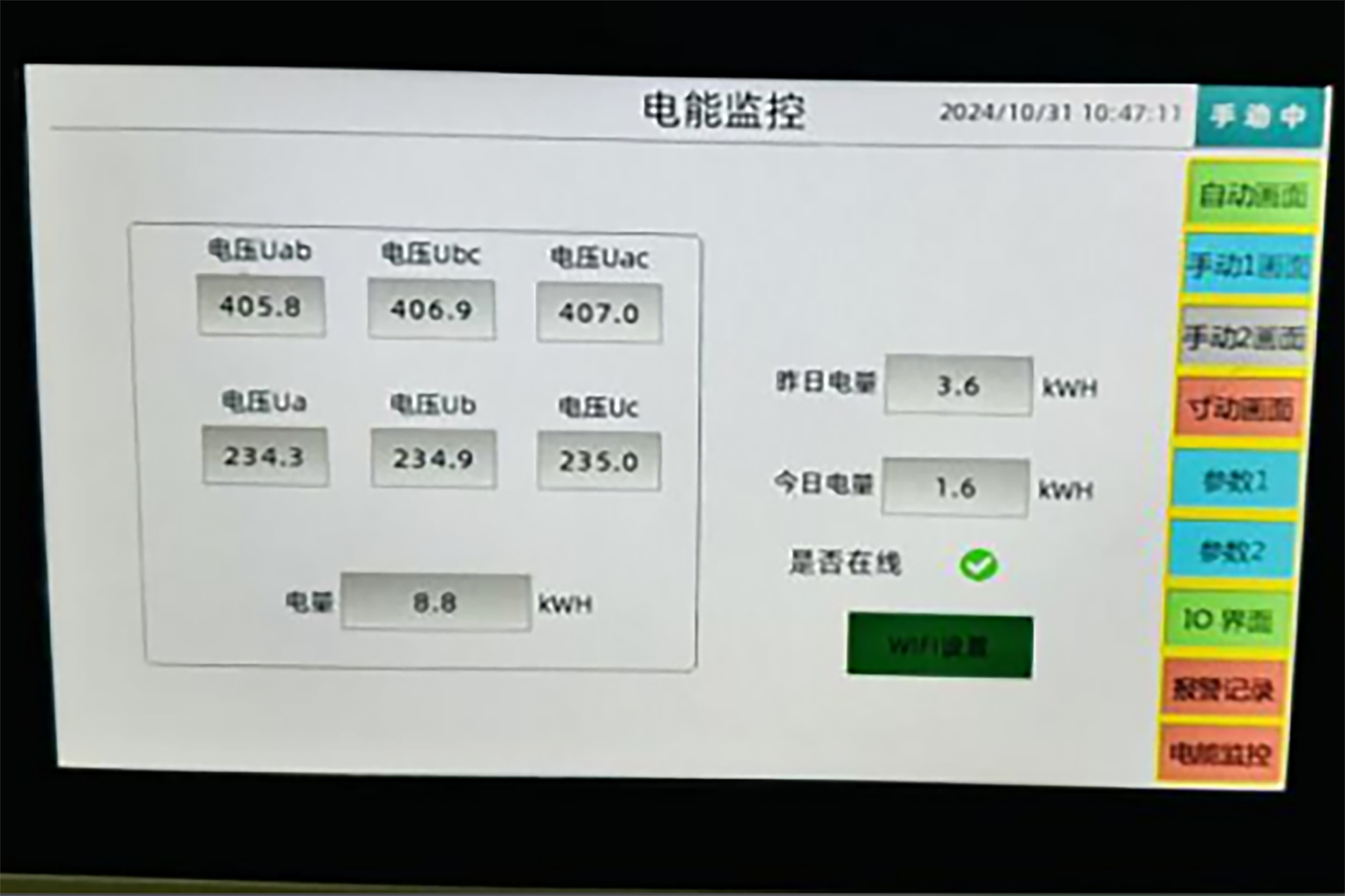

The PLC screen interface has complete panels and clear content. It can display the battery level and machine operation status in real time and can pre-store multiple sets of paramete
4.Matters of Concern
The products are transported by sea and packaged in simple packaging.
Delivery time: 70-80 days from the signing of the contract to pay the deposit;
Acceptance address: debugging and acceptance at your site; Acceptance criteria shall be the technical standards determined in the contract.
30% prepayment from the date of signing the contract, 70% of the payment before delivery.
Service: The whole machine warranty period is one year.
Provide customized services
5.Picture

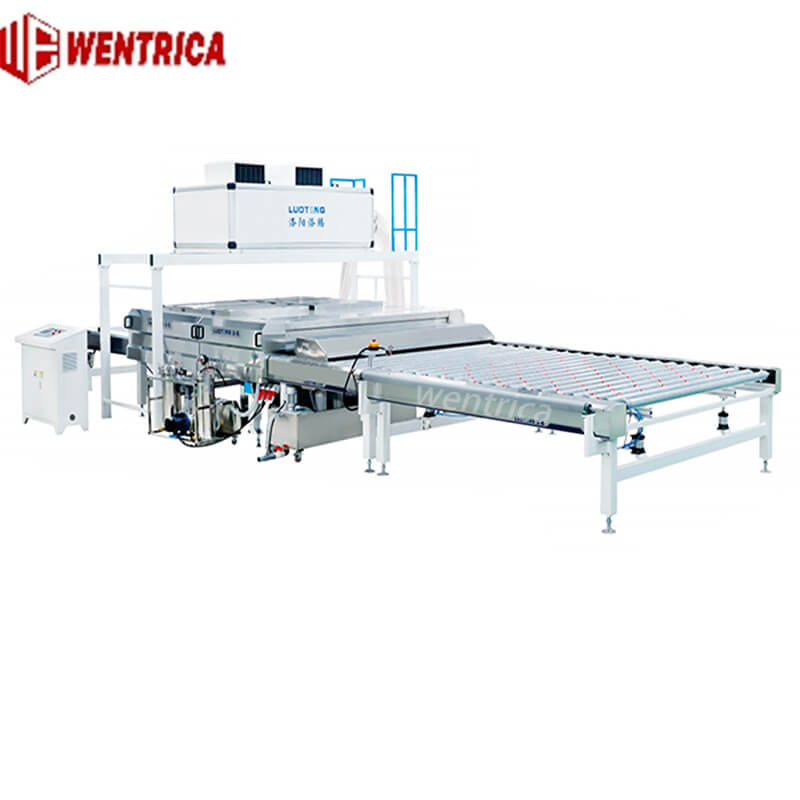

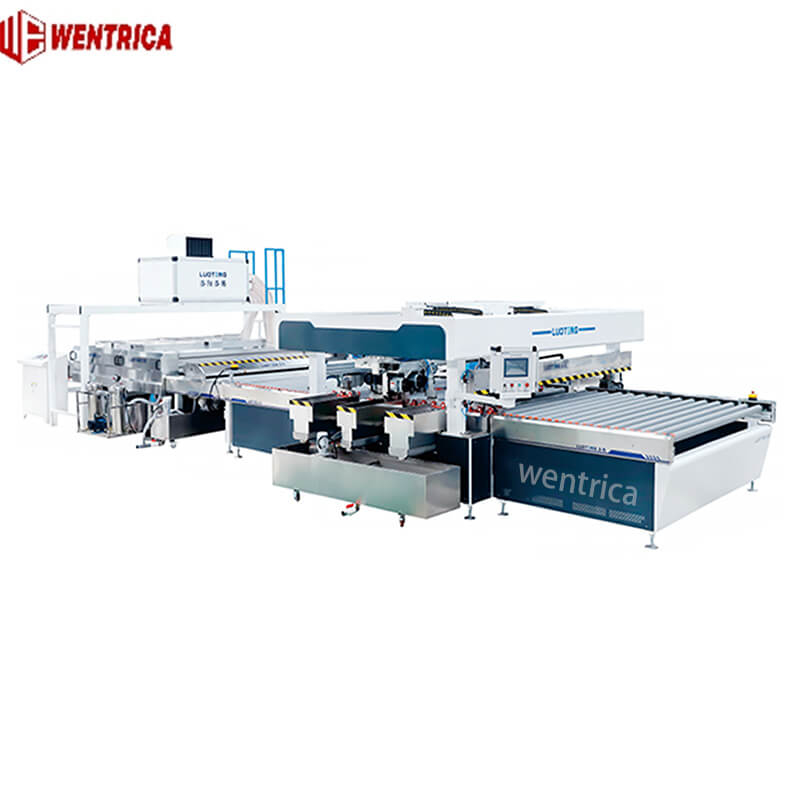

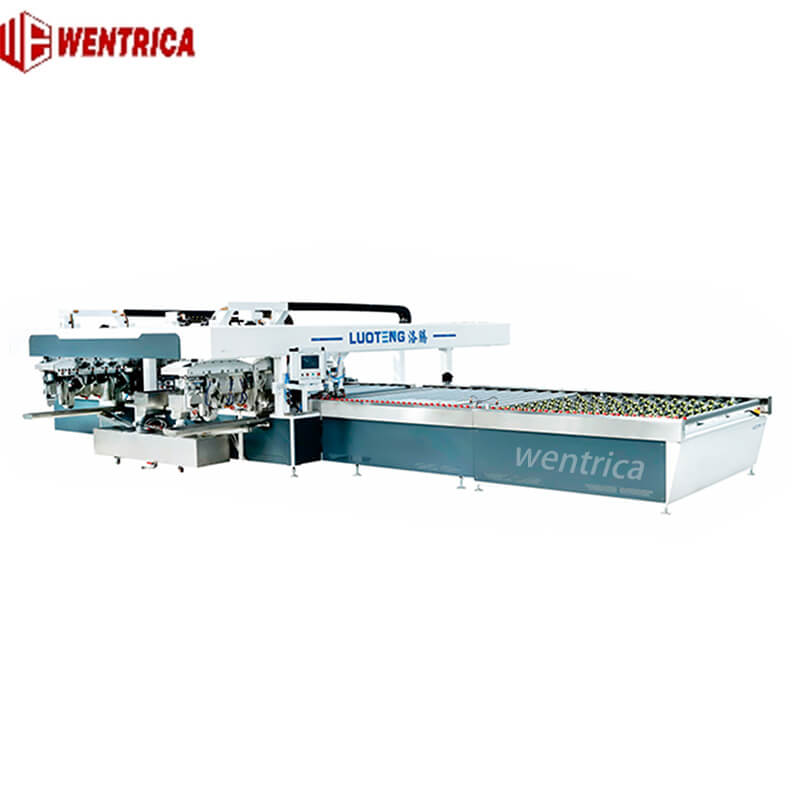

Effect drawing

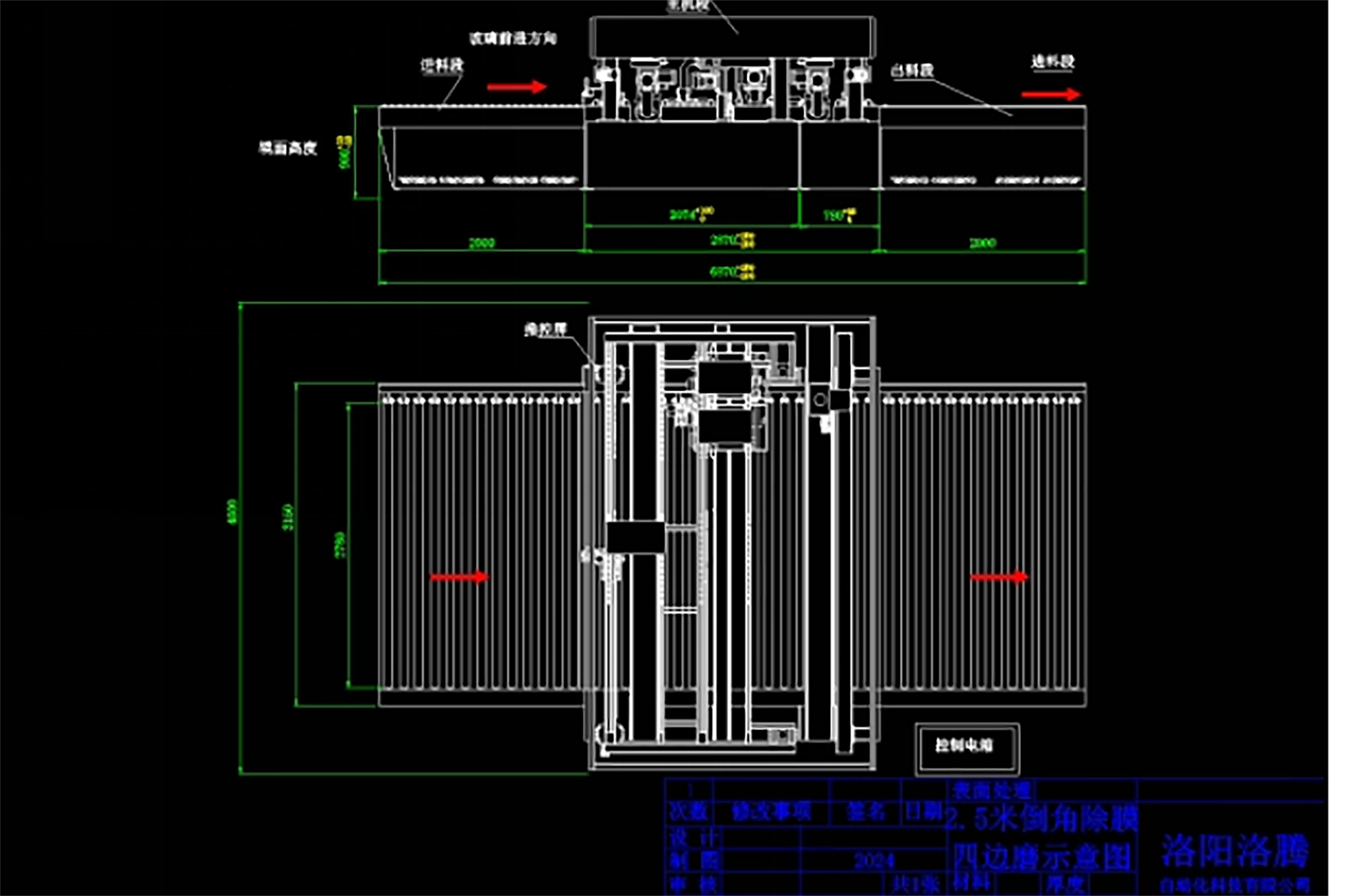

Structure schematic
